VD BIO MEDISYSTEMS 3 Channel Ecg Machine VD300E

VD BIO MEDISYSTEMS 3 Channel Ecg Machine VD300E

Medical Grade Product SKU: #7

₹25,697 ₹36,711 (30% OFF)

Estimated Delivery: 3 - 5 Working Days Across India

Warranty: 1 Year Warranty Official Brand Warranty Included

Guaranteed Safe And Secure Checkout

Introduction & Features

General Information

12 Lead ECG Synchronous Sampling System
Thermal Printer With 80mm Print Paper, Synchronization Print
5.7" Colour Touch-Screen, Both Push-Button and Touch Operation
Automatic Measurement, Calculation, Analysis, Waveform Freezing
Support USB Flash Disk & SD Memory
Data Transmitting to PC via RS232/USB
Patient's Information can be Input
Historical Data can be Reviewed and Printed
Built-in Rechargeable Lithium-ion Battery, AC/DC Power Conversion
Sleep Mode to Save Energy and Extend LCD Life
Portable Design with Hidden Handle, Convenient to Carry
Lead Off & Lack Off Paper Detection Function
7 Level Printing Thickness Adjustable

Performance & Parameters

General Information

Display & Interface: Equipped with a 5.7-inch color TFT touch screen alongside physical buttons for dual-mode operation, making it highly intuitive for medical staff
Acquisition & Interpretation: Features simultaneous 12-lead data collection with high-resolution sampling (12-bit/1000Hz) and built-in automated ECG measurement and interpretation.
Printing & Recording: Includes a high-resolution digital thermal array printer using 80 mm thermal paper. Selectable paper speeds of 25 mm/s and 50 mm/s.
Filters for Signal Clarity: Employs built-in digital filters (EMG, AC, and drift filters) to minimize electrical interference and baseline wander, yielding clean, artifact-free waveforms.
Safety: Features standard defibrillation protection and Class I, Type CF safety classifications

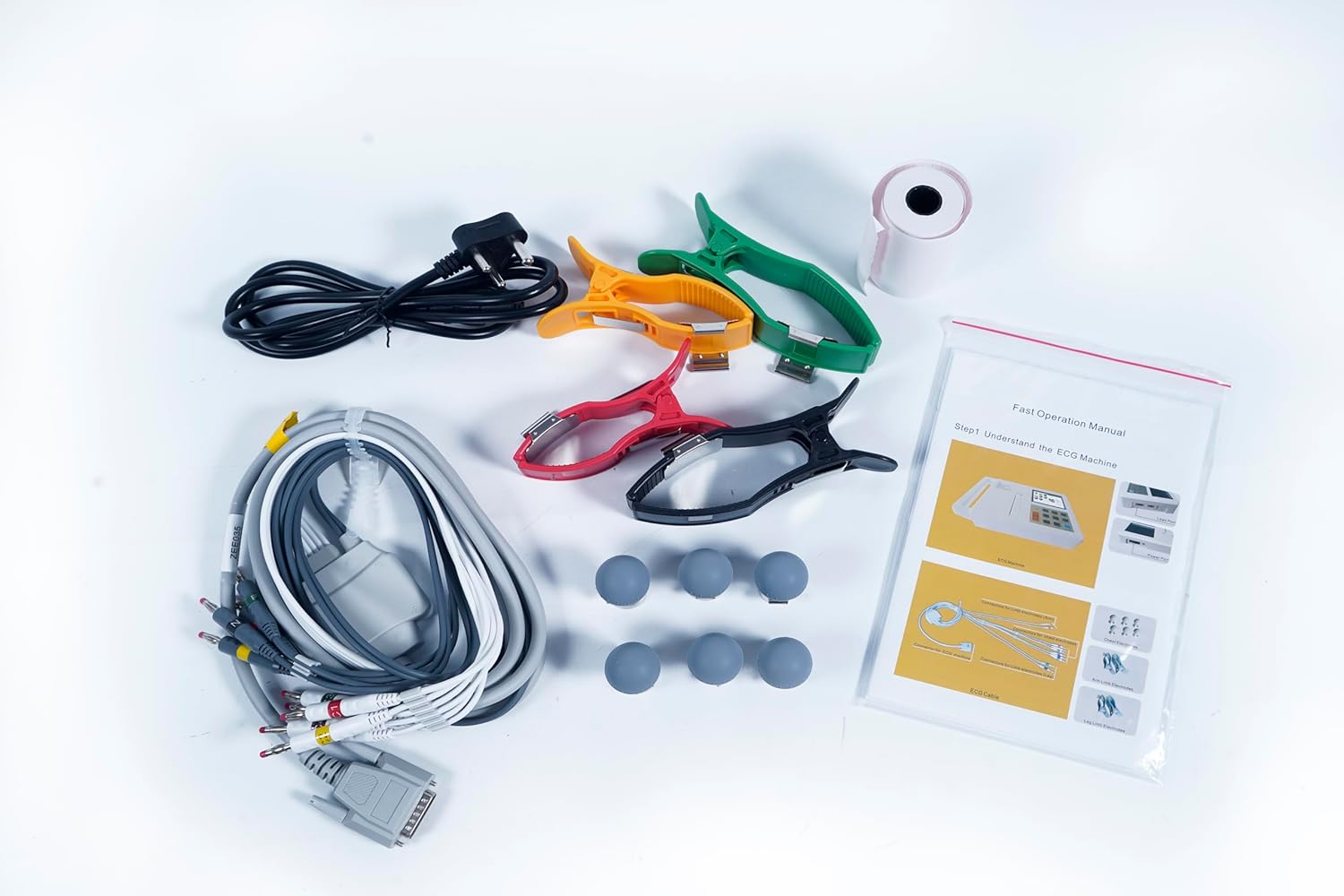

Content In Box & Accessories

General Information

Main Unit: VD-300E digital ECG machine.
Patient Cable: 10-lead standard ECG cable.
Chest Electrodes: Set of 6 precordial suction bulbs.
Limb Electrodes: Set of 4 clamp electrodes.
Power Supply: Standard AC Power cord / adapter.
Paper: Roll of thermal ECG recording paper (typically 80 mm wide).
